1L Semiautomatic Pet Blowing Machine / Stretch Blow Moulding Machine 1200bph Capacity

  • >=1 Sets
    $5,500.00
Bottle Volume (ml):
less than 2L
Production Capacity (BPH):
1600BPH
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PP, PET, 1L Semiautomatic Pet Blowing Machine / Stretch Blow Moulding Machine 1200bph Capacity
Max.Bottle Height(mm):
250 mm
Neck Diameter(mm):
28 mm
Max.Bottle Diameter(mm):
50 mm
Bottle Volume(ml):
500 ml
Production Capacity (BPH):
2000 BPH
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding, Extrusion Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
SANOFI
Year:
2019
Voltage:
380V
Dimension(L*W*H):
1.8*0.8*1.7m
Certification:
CE, SGS
Hollow part volume:
less than 2L
High Pressure Valve Brand:
AirTac
Clamping Force (kN):
800
Rotary Cylinder Brand:
FESTO
PLC Brand:
Schneider
Power (kW):
35
Weight (KG):
800 KG
Automation:
Semi-automatic
Warranty:
2 years
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Sustainable
Local Service Location:
Philippines, Pakistan, Peru, Canada, South Africa, Chile, Kenya, Bangladesh, Colombia, Ukraine, Nigeria, Tajikistan, Australia, Romania, Kazakhstan, Uzbekistan
Showroom Location:
Peru, Thailand, Pakistan, Canada, Philippines, South Korea, Chile, Uzbekistan, Nigeria, Romania, Australia, Ukraine, Kazakhstan, Tajikistan, Kenya, South Africa, Colombia
After Warranty Service:
Spare parts, Field maintenance and repair service, Video technical support, Online support
Applicable Industries:
Food & Beverage Factory
Automatic:
Yes
Blow Molding Machine:
Pet Blowing Machine
Bottle Blowing Machine:
Blow Moulding Machine
Cavity:
1 -cavity
Max.product capacity:
1500PCS/H
Product volume:
1-5L
Pressure of air supply:
2.0-3.0
Max.mould dimension:
340mm
Supply Ability
Supply Ability:
100 Set/Sets per Year Pet Blowing Machine
Packaging & Delivery
Packaging Details
export wooden cases(1 L Semi Automatic Pet Blowing Machine , Stretch Blow Moulding Machine 1200bph Capacity)
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

1L Semiautomatic Pet Blowing Machine / Stretch Blow Moulding Machine 1200bph Capacity

Semi automatic bottle making blow molding machine for pet bottle Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Details Images

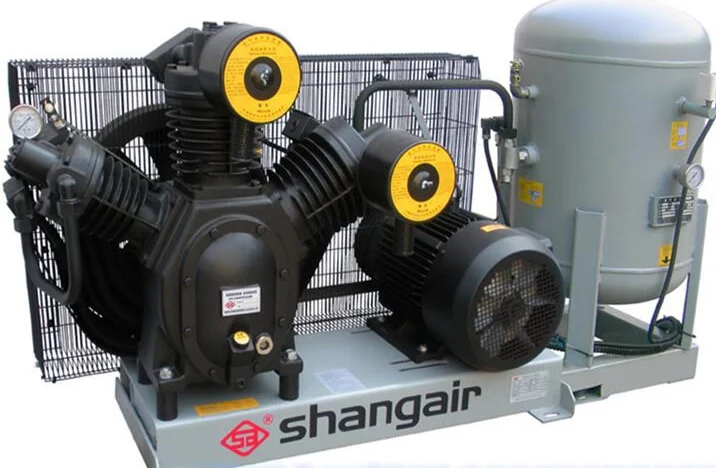

High Pressure Air Compressor
Brand: Shangair
Model:1.2m³/30bar
Air discharge:1.2m3/min
Working pressure:3.0MPA
Motor power:11kw
Storge tank:150L
Motor running speed:620R.P.M
Weight:600kg
Packing dimension:1900*1000*13mm
Semi automatic bottle making blow molding machine for pet bottle
Blow Molding Machine &Infrared Heater
Name: blow molding machine &infrared heater
The blow molding machine is of good mechanical-electrical integration.
It is highly automatic, intellectualize and user-friendly with PLC control system, touch screen, accurate and fast information
feedback system and alarm function.
The fully-sealed working area prevents the buckets from the pollution.
Product material:PET
Semi automatic bottle making blow molding machine for pet bottle
Air filter
Name: Air filter

Rated air flow:1.0m³/min
Rated working pressure:3.0Mpa
Input air temperature: ≤80ºC
Filtering precision: 1μm
Oil content: 1ppm
Weight: 40kg
Size: 300mm×300mm×750mm
Semi automatic bottle making blow molding machine for pet bottle
Bottle Blowing Parts
Name: bottle blowing parts
Unique heating system, accurate temperature control and easy adjustment.
Unique air storage unit.
The cooling system achieves the desired cooling effect.
Each action is driven by a cylinder instead of an oil pump, without contamination.
Semi automatic bottle making blow molding machine for pet bottle
Hot Products

Semi-Automatic 5 Gallon PET Bottle Washing

Machine

Semi-Automatic 5 Gallon PET Bottle Blowing Machine Bottle Making Machine


QGF 5 Gallon filling machine


Automatic PET Bottle Blowing Machine Bottle Making Machine

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one year
without adding any aseptic.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Company Profile

SANOFI company is a professional packing machine supplier which located in Zhangjiagang City, Jiangsu Pr. China.
Our business scope

1.Pure water/Mineral water treatment from 1-30 ton
2.Water 3-in 1 filling machine (PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
3.Juice 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
4.Carbonated drink 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
5.Can filling and capping machine
6.Food oil filling machine(PET or glass bottle filling machine)
7.5 gallon filling machine
8.Bottle rinsing machine(glass or pet)
9.Bottle filling machine(glass or pet)
10.Bottle capping machine(glass or pet)
11.Labeling machine( PVC , Glue, or opp labels)
12.Shrink wrapping machine
13.Pallet wrapping machine
14.PET Blow molding machine both semi-auto or full auto
15.PET preform injection machine
16.PP,PVC,EVA Extrusion blow molding machine
17.Cooling tunnel& bottle inverse sterilizing machine
We also have many good partners, like PET preform supplier,Gen power supplier, air compressor supplier, plastic machinery
supplier.....
Recommend Products
Product packaging
Packaging
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request.
