Complete Fruit Juice Production Line / Juice Drink Processing Line / Juice Making Machine

  • >=1 Sets
    $13,500.00
Power:
4.4-15kw
Model Number:
CGFR
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 1 Year
Packaging Type:
Bottles, Complete Fruit Juice Production Line / Juice Drink Processing Line / Juice Making Machine
Packaging Material:
Plastic, Complete Fruit Juice Production Line / Juice Drink Processing Line / Juice Making Machine
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory, Complete Fruit Juice Production Line
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Philippines, Peru, Australia, Kenya, South Korea, Chile, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan
Showroom Location:
Philippines, Peru, Kenya, South Korea, Chile, Romania, South Africa, Kazakhstan, Ukraine, Uzbekistan, Australia
Condition:
New
Application:
Beverage, Complete Fruit Juice Production Line / Juice Drink Processing Line / Juice Making Machine
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
Sanofi
Dimension(L*W*H):
By order
Weight:
2200-13000KG
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Energy saving
Name:
Automatic Liquid Filling Machine
Function:
Washing Filling Capping
Product name:
Complete Fruit Juice Processing Line / Drink Production Line
Processing Types:
Automatic Cup Filling Sealing Machine
Bottle type:
Glass Botte
Material:
SUS304/316
Usage:
Beverage Packaging
Supply Ability
Supply Ability:
20 Set/Sets per Month Complete Fruit Juice Production Line / Drink Processing Line
Packaging & Delivery
Packaging Details
The package adopts export special wooden case.
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Products Description

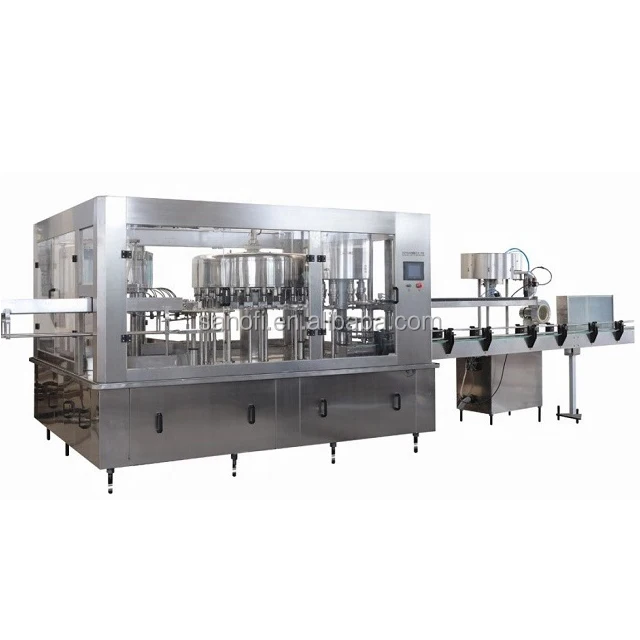

Complete Fruit Juice Production Line / Juice Drink Processing Line / Juice Making Machine

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage,
functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Details Images
Model
CGFR
16-16-6
CGFR
18-18-6
CGFR
24-24-8
CGFR
32-32-10
CGFR
40-40-12
CGFR
50-50-12
Washing NO
16
18
24
32
40
50
Filling No
16
18
24
32
40
50
Capping NO
6
6
8
10
12
12
Production Capacity (500ml)
4000BPH
6000BPH
10000BPH
12000BPH
16000BPH
22000BPH
Power supply (kw)
5
5.8
6.3
9.6
11.5
14
Overall Size
2300*1700*2500
2500*1850*2500
3100*2100*2500
4600*2160*2500
4600*3800*2500
5000*4700*2500

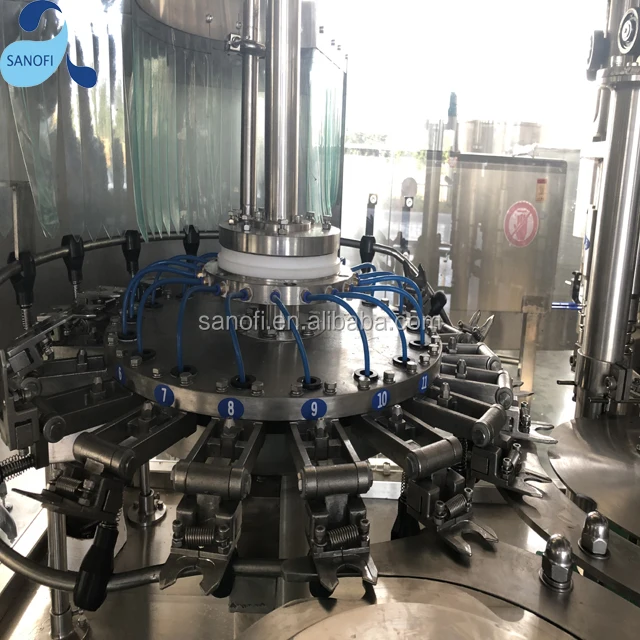

Washing Parts
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4) 304/316 stainless steel washing pump make the machine more durable .
Filling Parts
1) 304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Parts
1)Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
2)All 304/316 stainless steel construction
3) No bottle no capping
4) Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
Recommend Products
Product packaging
After Sales service
*We can send you the video of mechanical operation.
*Welcome to our company, we can show you the equipment in our factory. If you come to China and don't know the location of our
company, you can contact us to pick you up.
*We can design the machines according your requirements.(material ,power,filling type,the kinds of the bottles,and so on
*Professional engineers come to install and debug the machine, and train relevant operators until they can operate the machine
skillfully
Company Profile
Certifications
FAQ
Q: How is your delivery time?

A: Generally speaking, the sample order takes 5-7 days, and it takes 15-25 working days for the bulk order after receiving the payment. The exact delivery time depends on the project project and the number of orders.

Q: How do you make our business long-term and good relationship?

A1. We maintain good quality and competitive prices to ensure our customers benefit;
A2. We respect every customer as our friend, we sincerely do business with them and make friends with them, no matter where they come from. We are partners.
