China Aluminum Can Carbonated Beverage Filling and Sealing Machinery

  • >=1 Sets
    $12,000.00
Power:
4.4kw
Model Number:
DCGF16-12-6
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
China Aluminum Can Carbonated Beverage Filling and (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 YEAR
Packaging Type:
Bottles, China Aluminum Can Carbonated Beverage Filling and Sealing Machinery
Packaging Material:
Plastic, China Aluminum Can Carbonated Beverage Filling and Sealing Machinery
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory, China Aluminum Can Carbonated Beverage Filling and
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Philippines, Peru, Australia, Kenya, South Korea, Chile, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan
Showroom Location:
Philippines, Peru, Kenya, South Korea, Chile, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Australia
Condition:
New
Application:
Beverage, China Aluminum Can Carbonated Beverage Filling and Sealing Machinery
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V / 380V
Place of Origin:
zhangjiagangChina (Mainland)
Brand Name:
SANOFI
Dimension(L*W*H):
2250*1600*2100
Weight:
2500kg
Certification:
CE,ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High Productivity
Filling material:
carbonated drinks
Keywords:
Fillng Machine
Capacity:
3000-4000BPH(500ml)
Advantage:
Fully Auto-tuning
Product name:
China Aluminum Can Carbonated Beverage Filling and Sealing Machinery
Function:
Washing Filling Capping
Bottle type:
PET Plastic Bottle
Product Certification certification
TUV Certified.
PVOC Certified.
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
1.export wooden case, orThe package adopts export special wooden case;
2. it is suitable for long distance transport, damp proofing, and rust prevention,shockproof and so on.
3.And also it suitable for sea,land transport and entirety lifting.
4.Carbonated Beverage Pet Bottle Isobaric Filling Machine
Port
Ningbo / Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

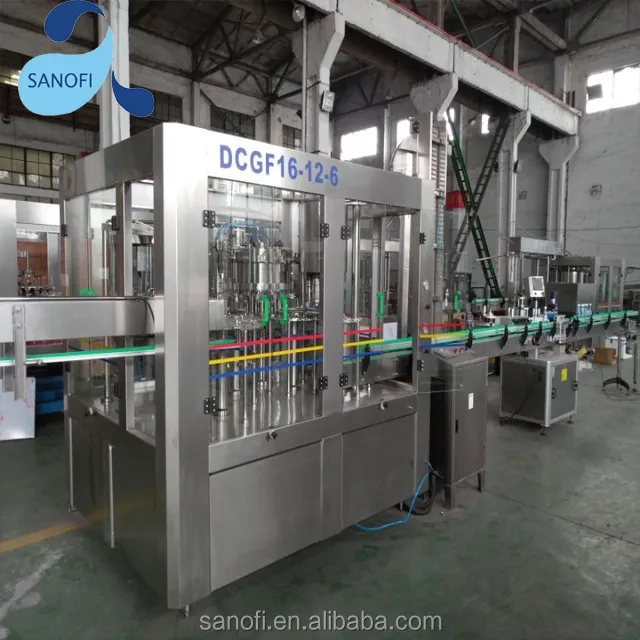

 China Aluminum Can Carbonated Beverage Filling and Sealing Machinery
This type machine is mainly used in filling &packing soft drinks(carbonated drinks),sush as Coca cola,Pepsi,sprite,aerated water etc,it is suitable for PET bottle.
The PET bottle is with screw capping, it can be equipped with aluminum cap and plastic cap
The machine contains Washing,Filling and Capping three functions together in one.
It runs automatic by advanced MITSUBISHI PLC controller with reliable HMI touch screen.
The conveyor runs by frequency changer,it synchronous with the host inverter makes bottle feeding more stable and reliable
Reliable phptoelectric detection,high-efficiency fully automatic production,simple operation

model
DCGF16-12-6
DCGF18-18-6
DCGF24-24-8
Capacity(ml)(bph)
3000-4000
5000-6000
7000-8000
Filling heads
16
18
24
Flushing heads
12
18
24
Capping heads
6
6
8
Filling precision
<=+5mm(Liquid level)
Bottle dimension
Bottle diameter∅50-∅100,height150-320
Flushing pressure
0.25MPa
Power(KW)
4.4
5.2
6.2
Voltage
380VAC 50/60Hz or Customized
Outline dimension(mm)
2250*1600*2100
2430*1800*2100
3050*2060*2100
Total Weight(kg)
2500
3500
4500

Carbonated beverage can filling machine usually works with other line rinsing machine, sealing machine as a straight linear line. This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated water, ice tea, etc, It is an ideal machine for small-and medium-sized beverage factories.

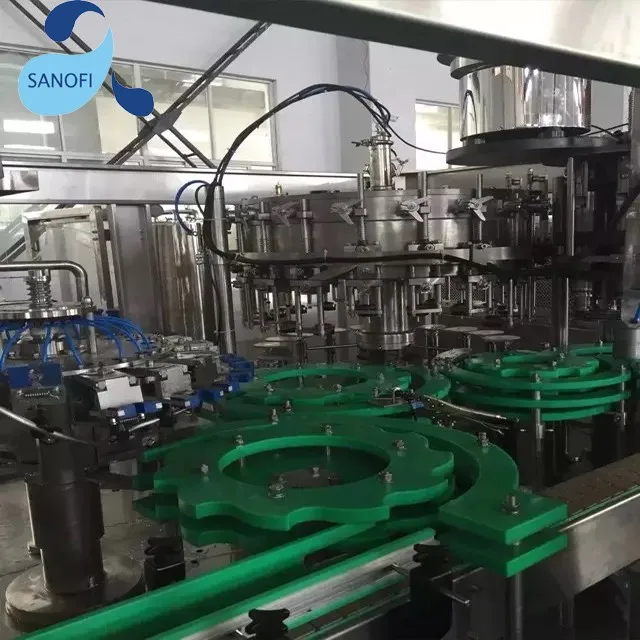

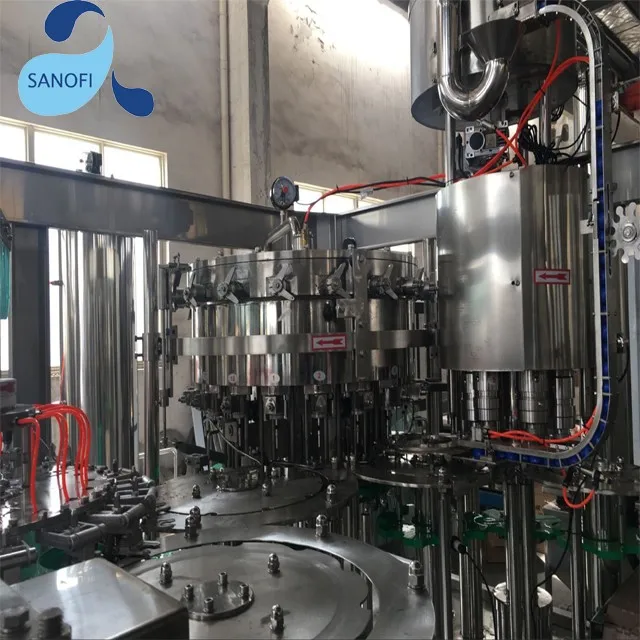

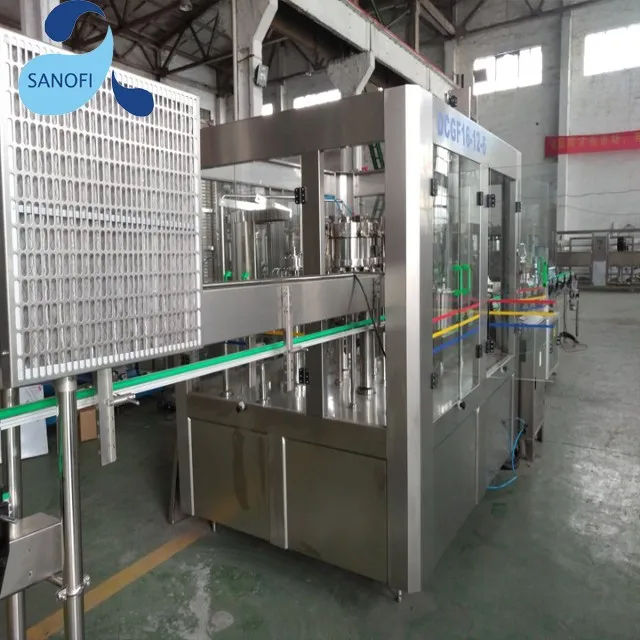

Detailed Images

feature

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Company introduction

Zhangjiagang SANOFI Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 2013, with the long history of accumulated experience in filling machine industry Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
SANOFI Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
