5 gallon blowing making machine

  • >=1 Sets
    $8,000.00
Bottle Volume (ml):
5gallon
Production Capacity (BPH):
150
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PET, 5 gallon blowing making machine
Max.Bottle Height(mm):
550 mm
Neck Diameter(mm):
55 mm
Max.Bottle Diameter(mm):
300 mm
Bottle Volume(ml):
20000 ml
Production Capacity (BPH):
150 BPH
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
SANOFI
Year:
new
Voltage:
220v/380v
Dimension(L*W*H):
230*84*215cm
Certification:
ISO AND CE
Hollow part volume:
10L 20L 25L
High Pressure Valve Brand:
SMC
Clamping Force (kN):
150
Rotary Cylinder Brand:
AirTac
PLC Brand:
Siemens
Power (kW):
30
Weight (KG):
850 KG
Automation:
Automatic
Warranty:
3 years, 18months
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Multifunctional
Local Service Location:
Pakistan, Peru, Germany, Canada, South Africa, Chile, Kyrgyzstan, Argentina, South Korea, Kenya, Bangladesh, Colombia, Ukraine, Nigeria, Tajikistan, Australia, Romania, Kazakhstan
Showroom Location:
Peru, Pakistan, Canada, United Kingdom, Philippines, South Korea, Chile, Uzbekistan, Nigeria, Romania, Australia, Kazakhstan, Tajikistan, Kenya, South Africa, Colombia, Sri Lanka
After Warranty Service:
Spare parts, Field maintenance and repair service, Video technical support, Online support
Applicable Industries:
Manufacturing Plant
capacity:
90PCS/HR(5gallon)
bottle volume:
5 gallon
Cavity:
1 Cavity
Clamping force:
150KN
Mould opening stroke:
350mm
Auxiliary Machines:
High pressure air compressor
Working Pressure:
<=1.0mpa
Supply Ability
Supply Ability:
100 Set/Sets per Year 5 Gallon Water Bottle Semi-Auto Pet Blowing Machine
Packaging & Delivery
Packaging Details
1.export wooden cases;
2.PE film wraping;
3.5 Gallon Water Bottle Semi-Auto Pet Blowing Machine
Port
Ningbo/shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Products Description

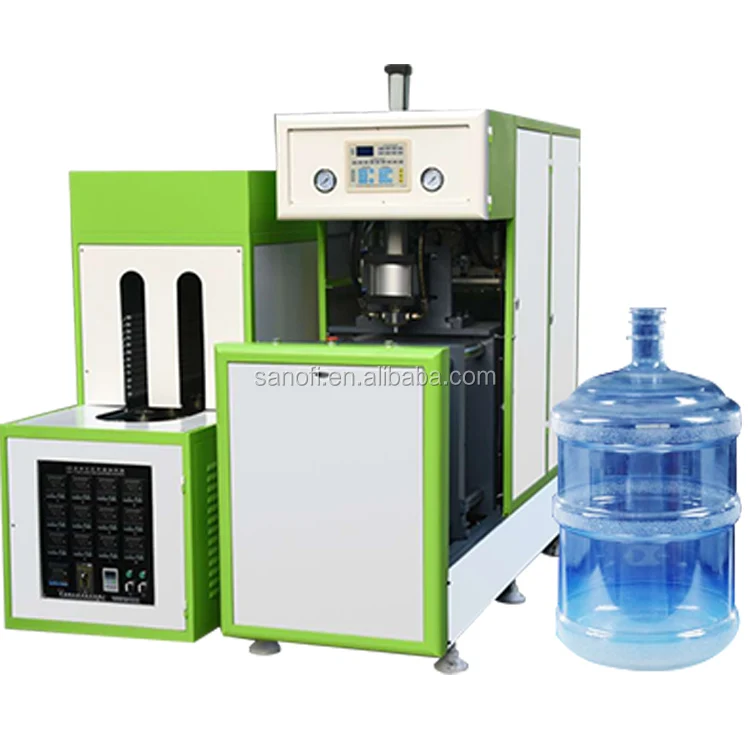

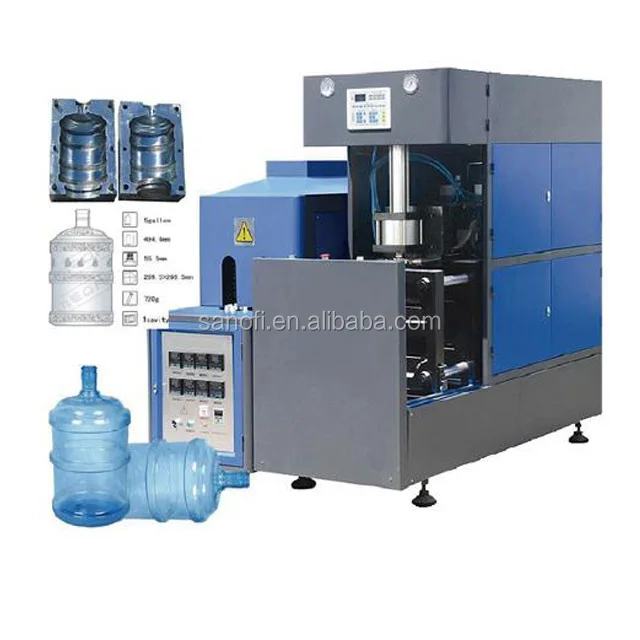

5 gallon blowing making machine

semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from
18L-20L. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

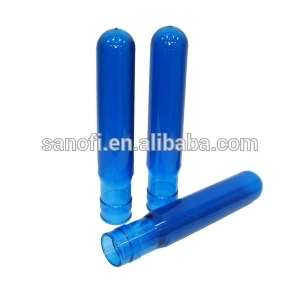

1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Details Images
Theoretical output
90pcs per hour
Max. mould plate Dimension(L x W)
400x450mm
Max.mould thickness:
370mm
Clamping force:
150KN
Mould opening stroke
350mm
Blowing Air Pressure
≤3.0 Mpa
Working Pressure
≤1.0mpa
Main machine (L x W x H)
1900*800*1600(mm)
Main machine weight
500Kg
Heater weight
450Kg
Power
14 kw

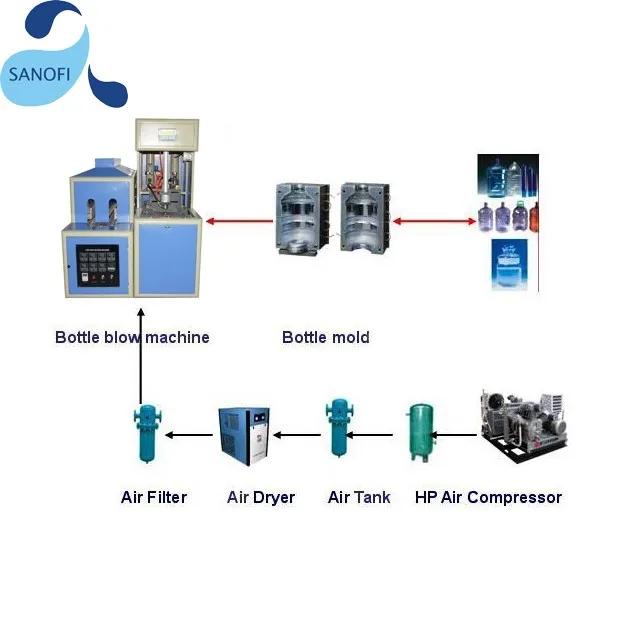

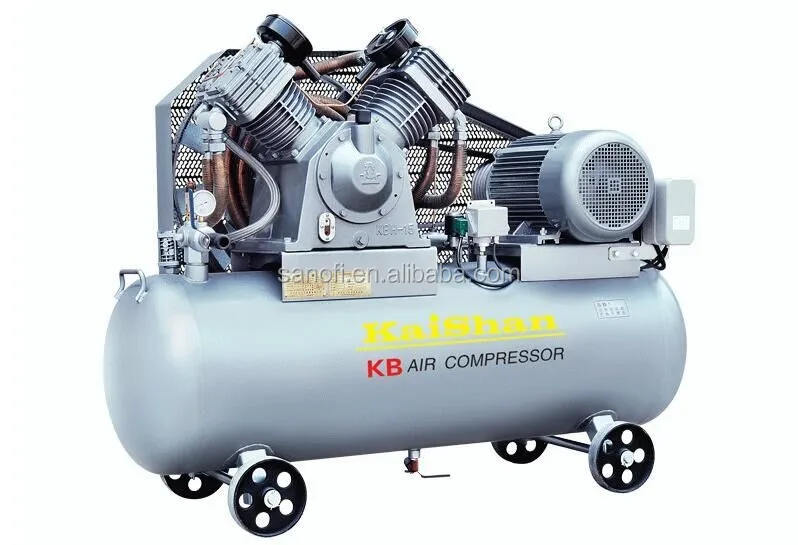

High Pressure Air Compressor

Brand: Shangair
Model:1.2m³/30bar
Air discharge:1.2m3/min
Working pressure:3.0MPA
Motor power:11kw
Storge tank:150L
Motor running speed:620R.P.M
Weight:600kg
Packing dimension:1900*1000*13mm
Semi automatic bottle making blow molding machine for pet bottle

Air filter

Rated air flow:1.0m³/min
Rated working pressure:3.0Mpa
Input air temperature: ≤80ºC
Filtering precision: 1μm
Oil content: 1ppm
Weight: 40kg
Size: 300mm×300mm×750mm
Semi automatic bottle making blow molding machine for pet bottle

Bottle Blowing Parts

Unique heating system, accurate temperature control and easy adjustment.
Unique air storage unit.
The cooling system achieves the desired cooling effect.
Each action is driven by a cylinder instead of an oil pump, without contamination.
Semi automatic bottle making blow molding machine for pet bottle
