Fully Automatic Stretch Pet Blow Molding Machine for pet bottle

  • >=1 Sets
    $15,000.00
Bottle Volume (ml):
50-20000
Production Capacity (BPH):
1500-6000pcs
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PET, Fully Automatic Stretch Pet Blow Molding Machine for pet bottle
Max.Bottle Height(mm):
250 mm
Neck Diameter(mm):
28 mm
Max.Bottle Diameter(mm):
50 mm
Bottle Volume(ml):
500 ml
Production Capacity (BPH):
2000 BPH
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
SANOFI
Year:
NEW
Voltage:
220v/380v
Dimension(L*W*H):
BY ORDER
Certification:
ISO AND CE
Hollow part volume:
50ml-2L
High Pressure Valve Brand:
SMC
Clamping Force (kN):
150
Rotary Cylinder Brand:
AirTac
PLC Brand:
Siemens
Power (kW):
20
Weight (KG):
1500 KG
Automation:
Automatic
Warranty:
3 years
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Competitive Price
Local Service Location:
Philippines, Pakistan, Peru, Russia, Canada, South Africa, Chile, South Korea, Kenya, Bangladesh, Ukraine, Nigeria, Tajikistan, Australia, Romania, Kazakhstan, Uzbekistan
Showroom Location:
Peru, Thailand, Pakistan, Philippines, South Korea, Chile, Uzbekistan, Nigeria, Romania, Australia, Kazakhstan, Tajikistan, Kenya, South Africa, Colombia, Sri Lanka
After Warranty Service:
Spare parts, Field maintenance and repair service, Video technical support, Online support
Applicable Industries:
Food & Beverage Factory
Name:
Fully Automatic Stretch Pet Blow Molding Machine for pet bottle
Bottle volume:
0.05-2.0L
Preform inner diameter:
15-60mm
Bottle diameter:
35-110
Frequency Inverter:
Mitsubishi
Solenoid valve:
Airtech
Cylinder:
SMC
Electric elements:
Schneider
Screen:
Delta
Model Number:
SF-A
Supply Ability
Supply Ability:
100 Set/Sets per Year Fully Automatic Stretch Pet Blow Molding Machine for pet bottle
Packaging & Delivery
Packaging Details
1.export wooden cases
2.Fully Automatic Stretch Pet Blow Molding Machine for pet bottle
Port
Ningbo/shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Products Description

Fully Automatic Stretch Pet Blow Molding Machine for pet bottle

Automatic PET Bottle Blowing / Plastic Stretch Blow Moulding / Bottle Making Machine blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes. The blow moulding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Details Images
output
according to bottle shape
Max. 6000PCS/H
product specification
bottle body diameter
20mm-100mm
bottle height
50mm-350mm
bottle mouth diameter
15mm-38mm

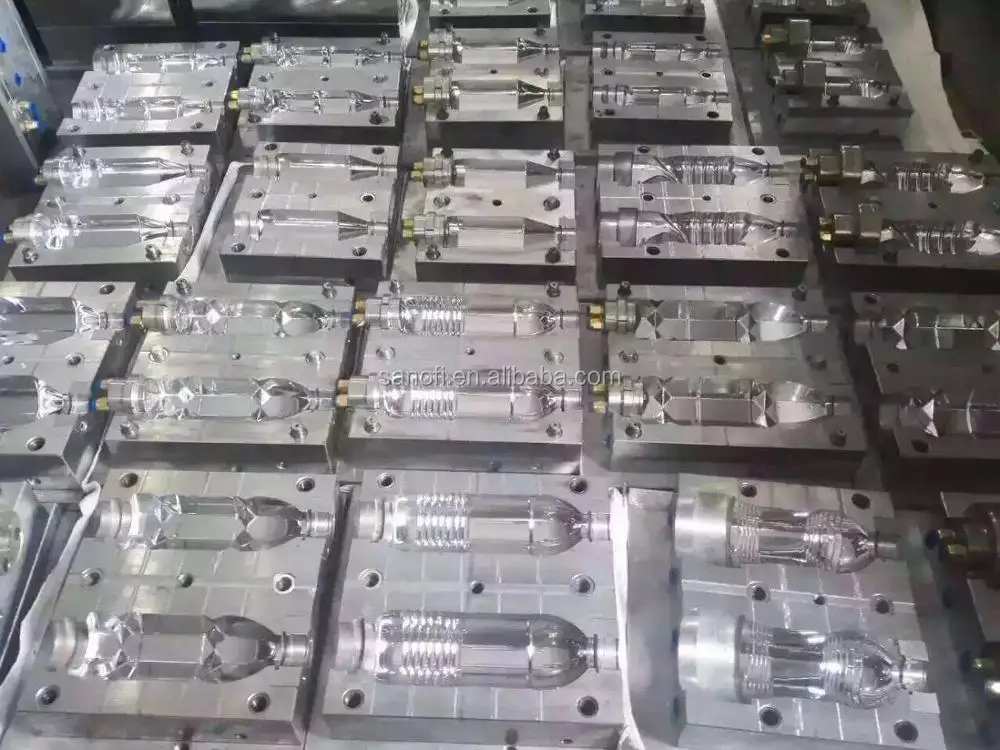

mold
cavity
2cavities
mold thickness
200mm
mold effective area
800*800mm
Main power
power ,voltage
380v 3Phase /220v 3Phase 50/60HZ
Install machine power/actural use power
68kw/15kw

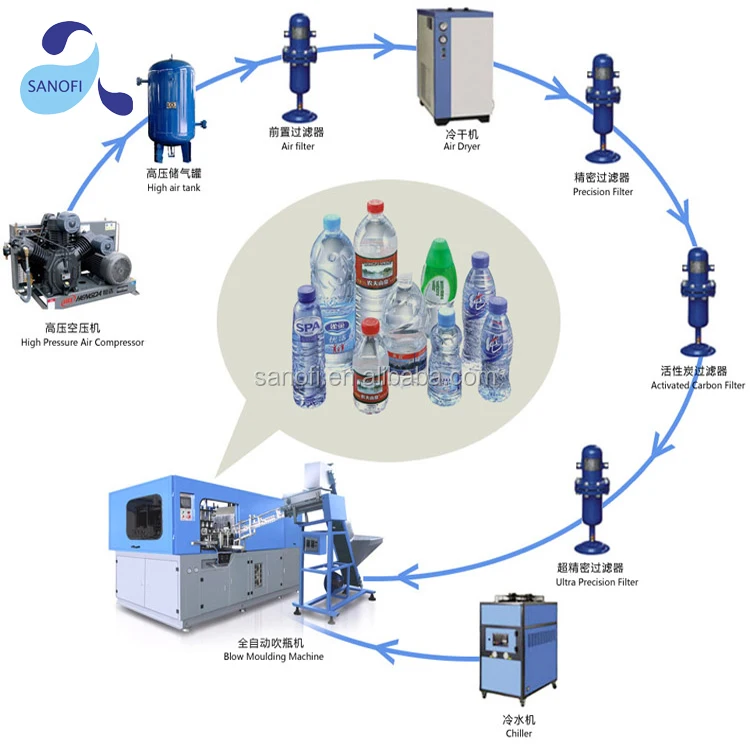

air source
low pressure air compressor
2.0m3/min 1.0MPa
high pressure air compressor
3.6m3/min 3.0MPa
cold-dry machine
2.0m3/min 3.0MPa 1set
cooling water
cooling quantity
15L/min
main machine size
L*W*H
160*60*161cm

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator
to add the preforms into the hopper when lacks preform instead of stopping the machine.


Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same
bottleneck diameter
· Unique heating system, accurate temperature control and easy adjustment.
· Unique air storage unit.
· The cooling system achieves the desired cooling effect.
· Each action is driven by a cylinder instead of an oil pump, without contamination.
The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed
and increases the output.
· Compact design saves space, reduces investment costs and increases competitiveness.
· Advanced PLC control system, light and simple control panel.
Recommend Products
Product packaging
After Sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line.
Company Profile
Certifications
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What’s your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
